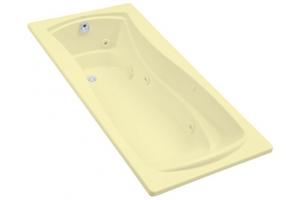

Kohler Mariposa K-1257-LH-Y2 Sunlight Mariposa 6' Whirlpool Bath Tub with Flange, Left-Hand Drain and Heater

Kohler Mariposa K-1257-LH-Y2 Sunlight Mariposa 6' Whirlpool Bath Tub with Flange, Left-Hand Drain and Heater

Mariposa© 6' whirlpool with flange, left-hand drain and heater

The body-contoured design of the Mariposa whirlpool is accented by six adjustable ProFlex© whirlpool jets for maximum bather comfort. The factory-installed heater maintains a steady water temperature for an extended bathing experience. Constructed of high-quality acrylic, this 6' model features a left-hand drain and includes a tile flange to further simplify installation and prevent behind-the-wall water damage.

72" x 36" x 20"
Removable or integral apron for front pump access
Six adjustable ProFlex© whirlpool jets for maximum bather comfort
Drop-in or three-wall alcove installation
Innovative technology enables this pump to provide a strong, steady level of hydro-massage
Acrylic
Includes tile flange to simplify installation and prevent the possibility of water damage behind the wall
Factory-installed heater helps maintain water temperature to extend the bather's hydro-massage experience
Textured bottom surface

Features of the Kohler Mariposa K-1257-LH-Y2 Sunlight Mariposa 6' Whirlpool Bath Tub with Flange, Left-Hand Drain and Heater:

Acrylic
Integral flange
Left drain
1-1/4 HP pump with air switch and cord with plug
In-line heater
6 individually adjustable multi-directional hydro-message jets
UL listed
Optional K-1283 front apron
Optional K-1491 removable pillow
Optional K-1639 timer kit
72" (182.9 cm) x 36" (91.4 cm) x 20" (50.8 cm)

Also Known As:
K.1257.LH.Y2
K 1257 LH Y2
K_1257_LH_Y2
K1257LHY2

The bath whirlpool shall be 72" (182.9 cm) in length, 36" (91.4 cm) in width, and 20" (50.8 cm) in height. Bath whirlpool shall be made of acrylic, drop-in rim style and left with integral flange. Bath whirlpool shall have 6 individually adjustable multi-directional hydro-massage jets, 1-1/4 HP pump with air switch and cord with plug and in-line heater with cord and plug. Bath whirlpool shall be UL listed. Bath whirlpool shall have optional K-1283 front apron. Bath whirlpool shall have optional K-1491 removable pillow. Bath whirlpool shall have optional K-1639 timer kit. Bath whirlpool shall be Kohler Model K-1257-LH.

Recommended Accessory

K-7166-AF Drain

K-1639 Timer kit

K-1491 Pillow

K-9696 Jet trim kit

K-1283 Apron (removable)

Codes/Standards Applicable
Specified model meets or exceeds the following:

ASME A112.19.7M

ANSI Z124.1

IAPMO/UPC

Underwriter's Laboratories (UL)

Listed in State of Massachusetts

Installation Notes

Floor support under whirlpool must provide for a minimum of 80 lbs./square foot (390 kg/square meter) loading.

The apron must be installed before the finished floor and wall materials are installed.

If installing a rim-mount faucet, make sure there is no interference with drain overflow and circulating system before drilling any holes. Consult local and national codes for minimum air gap requirements if installing a spout on the faucet deck.

Important note for the Kohler Mariposa K-1257-LH-Y2 Sunlight Mariposa 6' Whirlpool Bath Tub with Flange, Left-Hand Drain and Heater

Shipping Note: Due to the oversized nature of this product, freight is the only shipping method available. Our online system provides an accurate shipping cost. Just click the "Add to Cart" button and enter your zip code into the form on the Shopping Cart page.

008720669458 UPC/EAN:

Note: Specifications and pricing of the Kohler Mariposa K-1257-LH-Y2 Sunlight Mariposa 6' Whirlpool Bath Tub with Flange, Left-Hand Drain and Heater subject to change without notice. Illustrations and descriptions of the Kohler K-1257-LH-Y2 do not claim to be complete or exhaustive.
