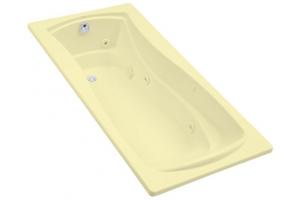

Kohler Mariposa K-1257-L-Y2 Sunlight Mariposa 6' Whirlpool Bath Tub with Flange and Left-Hand Drain

Kohler Mariposa K-1257-L-Y2 Sunlight Mariposa 6' Whirlpool Bath Tub with Flange and Left-Hand Drain

Mariposa© 6' whirlpool with flange and left-hand drain

The body-contoured design of the Mariposa whirlpool is accented by six adjustable ProFlex whirlpool jets for maximum bather comfort. Constructed of high-quality acrylic, this 6' model features a left-hand drain and includes a tile flange to further simplify installation and prevent behind-the-wall water damage.

72" x 36" x 20"
Six adjustable ProFlex© whirlpool jets for maximum bather comfort
Drop-in or three-wall alcove installation
Innovative technology enables this pump to provide a strong, steady level of hydro-massage
Acrylic
Includes tile flange to simplify installation and prevent the possibility of water damage behind the wall
Textured bottom surface

Features of the Kohler Mariposa K-1257-L-Y2 Sunlight Mariposa 6' Whirlpool Bath Tub with Flange and Left-Hand Drain:

Acrylic
Integral flange
Left drain
1-1/4 HP pump with air switch and cord with plug
6 individually adjustable multi-directional hydro-message jets
UL listed
Optional K-1283 front apron
Optional K-1491 removable pillow
72" (182.9 cm) x 36" (91.4 cm) x 20" (50.8 cm)

Also Known As:
K.1257.L.Y2
K 1257 L Y2
K_1257_L_Y2
K1257LY2

The bath whirlpool shall be 72" (182.9 cm) in length, 36" (91.4 cm) in width, and 20" (50.8 cm) in height. Bath whirlpool shall be made of acrylic, drop-in rim style and left outlet with integral flange. Bath whirlpool shall have 6 individually adjustable multi-directional hydro-massage jets, 1-1/4 HP pump with air switch and cord with plug. Bath whirlpool shall be UL listed. Bath whirlpool shall have optional K-1283 front apron. Bath whirlpool shall have optional K-1491 removable pillow. Bath whirlpool shall be less all trim. Bath whirlpool shall be Kohler Model K-1257.

Recommended Accessory

K-7166-AF Drain

K-1491 Pillow

K-9696 Jet trim kit

K-1283 Apron (removable)

Codes/Standards Applicable
Specified model meets or exceeds the following:

ASME A112.19.7M

ANSI Z124.1

IAPMO/UPC

Underwriter's Laboratories (UL)

Listed in State of Massachusetts

Installation Notes

Floor support under whirlpool must provide for a minimum of 80 lbs./square foot (390 kg/square meter) loading.

If installing a rim-mount faucet, make sure there is no interference with drain overflow and circulating system before drilling any holes. Consult local and national codes for minimum air gap requirements if installing a spout on the faucet deck.

Important note for the Kohler Mariposa K-1257-L-Y2 Sunlight Mariposa 6' Whirlpool Bath Tub with Flange and Left-Hand Drain

Shipping Note: Due to the oversized nature of this product, freight is the only shipping method available. Our online system provides an accurate shipping cost. Just click the "Add to Cart" button and enter your zip code into the form on the Shopping Cart page.

004068881326 UPC/EAN:

Note: Specifications and pricing of the Kohler Mariposa K-1257-L-Y2 Sunlight Mariposa 6' Whirlpool Bath Tub with Flange and Left-Hand Drain subject to change without notice. Illustrations and descriptions of the Kohler K-1257-L-Y2 do not claim to be complete or exhaustive.
