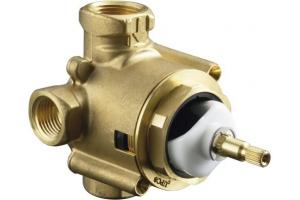

Kohler MasterShower K-687-K 3/4\" 3-Way Transfer Valve Body


The Kohler MasterShower K-687-K 3/4" 3-Way Transfer Valve Body is no longer available from AffordableFaucets.

Regrettably, we do not have any inventory left nor have access to this product as it is discontinued. Please note that we place this message on products that we have exhausted our options in obtaining. Contacting us will only reaffirm this message.

Thank you,
AffordableFaucets Staff


Kohler MasterShower K-687-K 3/4" 3-Way Transfer Valve Body

MasterShower© 3-way valve

KOHLER© Performance Showering features an array of innovative technologies and design options that take showering beyond the ordinary to customized environments that delight the senses. Used in conjunction with a HiFlow Rite-Temp© pressure-balancing valve or stacked thermostatic valve, the 3-way transfer valve allows you to direct water flow into six different outputs for a personalized showering experience.

  • 3/4" inlet
  • Controls all functions from a single valve
  • Eliminates the need for multiple volume control valves
  • MasterShower offers a wide variety of finishes

Features of the Kohler MasterShower K-687-K 3/4" 3-Way Transfer Valve Body:

  • Brass construction
  • Wall-mount
  • Brass valve body
  • Selection of one or combination of two outlets
  • Single-handle control
  • One 3/4" NPT inlet connection
  • Three 1/2" NPT outlet connections
  • Intended for use with Kohler© bath and shower supply valves

Also Known As:
K.687.K
K 687 K
K_687_K
K687K

Single-handle wall-mount three-way transfer valve shall be of brass construction. Product shall feature one 3/4" NPT inlet connection, three 1/2" NPT outlet connections, and a brass valve body. Product shall feature a selection of one or combination of two outlets. Product is intended for installation with any Kohler bath and shower supply valves. Transfer valve shall be Kohler Model K-687-K-NA, K687-K-NA, K-687-K.

Installation Notes

  • Install this product according to the installation guide.
  • Product is not intended for use as a shut-off valve.
  • Product requires a mixed water supply to the inlet.
  • Codes/Standards Applicable
    Specified model meets or exceeds the following:

  • ASME/ANSI A112.18.1
  • CSA B125
  • IAPMO/UPC
  • Files for the Kohler MasterShower K-687-K 3/4" 3-Way Transfer Valve Body

    • 650531241580 UPC/EAN:
    Note: Specifications and pricing of the Kohler MasterShower K-687-K 3/4" 3-Way Transfer Valve Body subject to change without notice. Illustrations and descriptions of the Kohler K-687-K do not claim to be complete or exhaustive.
