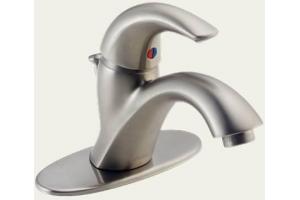

Delta CSpout 583-SSWF Brillance Stainless 4" Centerset Bath Faucet with Lever Handle & Pop-Up
[583-SSWF, 583.SSWF, 583 SSWF, 583_SSWF, 583SSWF]
Delta CSpout 583-SSWF Brillance Stainless 4" Centerset Bath Faucet with Lever Handle & Pop-Up
CSpout Collection
Features of the Delta CSpout 583-SSWF Brillance Stainless 4" Centerset Bath Faucet with Lever Handle & Pop-Up:
- CSpoutl© Series
- An elegant faucet that takes on a unique personality with each handle option.
- The arching spout provides a distinctive look to any bath.
- Single Handle Centerset Bath Faucet
- 1 or 3-hole 4" installation
- Rigid spout
- Ceramic valve
- 50/50 pop-up
- 1.5 Gallons Per Minute Flow Rate
- 5.7 Liters Per Minute Flow Rate
- 1/2" IPS connection
- ADA Compliant
- Lifetime Faucet and Finish Warranty
Also Known As:
583.SSWF
583 SSWF
583_SSWF
583SSWF
Standard Specifications
- Solid brass fabricated body.
- Single hole mount or 4” (102mm) centerset with optional included escutcheon.
- 5 3/8" (137 mm) long, 5 9/16" (141 mm) high rigid spout.
- 14” (356 mm) flex supplies with 3/8” (10mm) compression fittings (hot and cold).
- Red/Blue graphics on handle button indicate hot/cold temperature.
- 50/50 pop-up has metal flange with plastic drain.
- Ceramic cartridge with high temperature rotational limit stop.
Flow
- 2.2 gpm (8.3 L/min) at 60 psi
Standards
- ASME A112.18.1/ CSA B125.1
- ADA compliance to ICC/ANSI A117.1
- IAPMO Listed
- CSA Certified
Warranty
- Lifetime Faucet and Finish Limited Warranty to the original consumer purchaser to be free from defects in material and workmanship.
- 5 Year Limited Warranty for usage in all industrial, commercial and business applications.
Installation Note for the Delta CSpout 583-SSWF Brillance Stainless 4" Centerset Bath Faucet with Lever Handle & Pop-Up
- Designed to install thru 1 1-3/8" (35mm) maximum diameter on 4" centers.
- Designed to install on 1-3/4" (45mm) maximum deck thickness
Files for the Delta CSpout 583-SSWF Brillance Stainless 4" Centerset Bath Faucet with Lever Handle & Pop-Up
Note: Specifications and pricing of the Delta CSpout 583-SSWF Brillance Stainless 4" Centerset Bath Faucet with Lever Handle & Pop-Up subject to change without notice. Illustrations and descriptions of the Delta 583-SSWF do not claim to be complete or exhaustive.
