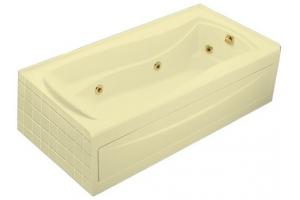

Kohler Mariposa K-1257-RA-Y2 Sunlight Mariposa 6' Whirlpool Bath Tub with Integral Apron, Flange and Right-Hand Drain

Kohler Mariposa K-1257-RA-Y2 Sunlight Mariposa 6' Whirlpool Bath Tub with Integral Apron, Flange and Right-Hand Drain

Mariposa© 6' whirlpool with integral apron, flange and right-hand drain

The body-contoured design of the Mariposa whirlpool is accented by six adjustable ProFlex© whirlpool jets for maximum bather comfort. Constructed of high-quality acrylic, this 6' model features a right-hand drain and includes an integral apron and tile flange to further simplify installation and prevent behind-the-wall water damage.

72" x 36" x 20"
Integral apron for easy alcove installation and pump access
Six adjustable ProFlex© whirlpool jets for maximum bather comfort
Drop-in or three-wall alcove installation
Innovative technology enables this pump to provide a strong, steady level of hydro-massage
Acrylic
Includes tile flange to simplify installation and prevent the possibility of water damage behind the wall
Custom pump locations expand installation and pump access options
Textured bottom surface

Features of the Kohler Mariposa K-1257-RA-Y2 Sunlight Mariposa 6' Whirlpool Bath Tub with Integral Apron, Flange and Right-Hand Drain:

Acrylic
Right outlet
Integral apron with removable access panel
1-1/4 HP pump with air switch and cord with plug
6 individually adjustable multi-directional hydro-message jets
UL listed
Optional K-1491 removable pillow
Optional K-1639 timer kit
72" (182.9 cm) x 36" (91.4 cm) x 20" (50.8 cm)

Also Known As:
K.1257.RA.Y2
K 1257 RA Y2
K_1257_RA_Y2
K1257RAY2

The bath whirlpool shall be 72" (182.9 cm) in length, 36" (91.4 cm) in width, and 20" (50.8 cm) in height. Bath whirlpool shall be made of acrylic. Bath whirlpool shall have integral apron with removable access panel. Bath whirlpool shall have 6 individually adjustable multi-directional hydro-massage jets, 1-1/4 HP pump with air switch and cord with plug. Bath whirlpool shall be UL listed. Bath whirlpool shall have optional K-1491 removable pillow. Bath whirlpool shall have optional K-1639 timer kit. Bath whirlpool shall be Kohler Model K-1257-LA.

Recommended Accessory

K-7166-AF Drain

K-1491 Pillow

K-9696 Jet trim kit

K-1639 Timer kit

Codes/Standards Applicable
Specified model meets or exceeds the following:

ASME A112.19.7M

ANSI Z124.1

IAPMO/UPC

Underwriter's Laboratories (UL)

Installation Notes

Floor support under whirlpool must provide for a minimum of 80 lbs./square foot (390 kg/square meter) loading.

If installing a rim-mount faucet, make sure there is no interference with drain overflow and circulating system before drilling any holes. Consult local and national codes for minimum air gap requirements if installing a spout on the faucet deck.

Important note for the Kohler Mariposa K-1257-RA-Y2 Sunlight Mariposa 6' Whirlpool Bath Tub with Integral Apron, Flange and Right-Hand Drain

Shipping Note: Due to the oversized nature of this product, freight is the only shipping method available. Our online system provides an accurate shipping cost. Just click the "Add to Cart" button and enter your zip code into the form on the Shopping Cart page.

008720635604 UPC/EAN:

Note: Specifications and pricing of the Kohler Mariposa K-1257-RA-Y2 Sunlight Mariposa 6' Whirlpool Bath Tub with Integral Apron, Flange and Right-Hand Drain subject to change without notice. Illustrations and descriptions of the Kohler K-1257-RA-Y2 do not claim to be complete or exhaustive.
