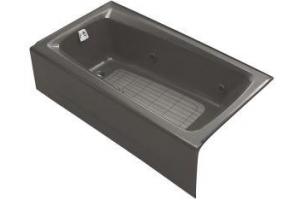

Kohler Mendota K-514-H2-58 Thunder Grey Whirlpool Bath Tub with Right-Hand Drain
Mendota™ whirlpool with right-hand drain
The Mendota whirlpool features an accommodating size with an integral apron for easy three-wall alcove installation, while quiet operation helps create a personal retreat that soothes all of your senses. A variable-speed pump with 18 settings powers four Flexjet whirlpool jets that provide an individually adjustable hydro-massage for those aching muscles, and an in-line, 1.5-kW heater keeps the water at your desired temperature. This model features a right-hand drain.
60" x 32" x 16-1/4"
Standard 5' x 32" size with integral apron for alcove installation
KOHLER® Experience whirlpools create a sensory sanctuary where you can relax, rejuvenate and renew
Featuring a variable-speed pump with 18 settings and in-line, 1.5-kW heater
Four Flexjet™ whirlpool jets provide an individually adjustable hydro-massage for aching muscles
Three-wall alcove installation
240V hard-wire electrical service required
KOHLER® Cast Iron
Designed for one-person bathing
Optional remote control available
Less all trim
Features of the Kohler Mendota K-514-H2-58 Thunder Grey Whirlpool Bath Tub with Right-Hand Drain:
Cast iron with Safeguard® finish
Right drain
1.5 hp variable speed pump with 1.5 kW heater, back-lit user keypad, and remote control
4 Flexjets
UL listed
Less all trim
60" (152.4 cm) x 32" (81.3 cm) x 16-1/4" (41.3 cm)
Less grip rails
Also Known As: K.514.H2.58 K 514 H2 58 K_514_H2_58 K514H258
The bath whirlpool shall be 60" (152.4 cm) in length, 32" (81.3 cm) in width, and 16-1/4" (41.3 cm) in height. Bath whirlpool shall be made of cast iron with Safeguard finish. Bath whirlpool shall have 4 Flexjets, 1.5 hp variable speed pump, 1.5 kW heater, and back-lit user control. Bath whirlpool shall be UL listed. Bath whirlpool shall be less all trim. K-783-H2 and K-784-H2 bath whirlpool shall be drilled for K-9620 grip rails (required). Bath whirlpool shall be Kohler Model K-514.
Required Accessories
K-9694 Jet trim kit
K-9620 Grip rails (pair) - required for K-783/K-784-H2
Recommended Accessories
K-7160-TF Drain
K-1491 Pillow
Codes/Standards Applicable Specified model meets or exceeds the following:
IAPMO/UPC
ASME A112.19.7M
Underwriters Laboratories (UL)
ASME A112.19.1M
Important note for the Kohler Mendota K-514-H2-58 Thunder Grey Whirlpool Bath Tub with Right-Hand Drain
Shipping Note: Due to the oversized nature of this product, freight is the only shipping method available. Our online system provides an accurate shipping cost. Just click the "Add to Cart" button and enter your zip code into the form on the Shopping Cart page.
Files for the Kohler Mendota K-514-H2-58 Thunder Grey Whirlpool Bath Tub with Right-Hand Drain
Data Sheet
Installation Manual
087206847448
UPC/EAN:
Note: Specifications and pricing of the Kohler Mendota K-514-H2-58 Thunder Grey Whirlpool Bath Tub with Right-Hand Drain subject to change without notice. Illustrations and descriptions of the Kohler K-514-H2-58 do not claim to be complete or exhaustive.
