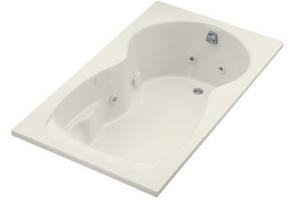

Kohler Synchrony K-1192-96 Biscuit 5' Whirlpool Bath Tub

Kohler Synchrony K-1192-96 Biscuit 5' Whirlpool Bath Tub

Synchrony© 5' whirlpool, less softgrip grip handles

With six adjustable ProFlex whirlpool jets, the Synchrony whirlpool offers a bathing area with a high level of comfort and design. Available in a palette of KOHLER colors to complement any decor, this bath is crafted of high-gloss acrylic and backed with a solid layer of fiberglass to ensure durability and resistance to chipping, cracking and flexing.

60" x 42" x 20"
A high level of design with extra-wide bathing area
Six adjustable ProFlex© whirlpool jets for maximum bather comfort
Drop-in or three-wall alcove installation
Innovative technology enables this pump to provide a strong, steady level of hydro-massage
Acrylic
Crafted of high-gloss acrylic and backed with a solid layer of fiberglass to ensure durability and resistance to chipping, cracking and flexing

Features of the Kohler Synchrony K-1192-96 Biscuit 5' Whirlpool Bath Tub:

Acrylic
1.25 hp pump with air switch and grounding-type plug-in cord
6 individually adjustable multi-directional hydro-massage jets
Optional K-1491 removable bath pillow
Optional K-1278 front apron
Optional K-1717 ProFlex© 20-minute timer kit
Drop-in rim style
Without softgrip grip handles
60° (152.4 cm) x 42" (106.7 cm) x 20° (50.8 cm)

Also Known As:
K.1192.96
K 1192 96
K_1192_96
K119296

The bath whirlpool shall be 60° (152.4 cm) in length, 42" (106.7 cm) in width, and 20° (50.8 cm) in height. Bath whirlpool shall be made of acrylic, drop-in rim style. Bath whirlpool shall have 6 individually adjustable multi-directional hydro-massage jets, a 1.25 hp pump with air switch and grounding-type plug-in cord. Bath whirlpool shall be without softgrip grip handles. Bath whirlpool shall have an optional K-1278 front apron, an optional K-1491 removable pillow, an optional K-1717 20-minute timer kit, and an optional K-9696 jet trim kit. Bath whirlpool shall be Kohler Model K-1192.

Recommended Accessory

K-7213 Cable drain with PVC tubing

K-7214 Cable drain without PVC tubing

K-7161-AF Pop-up Drain

K-1491 Pillow

K-1601 Footstop

K-1283 Separate apron with removable panel for front access

K-9696 Jet trim kit (metal finishes)

K-1717 20-minute timer kit

Codes/Standards Applicable
Specified model meets or exceeds the following:

ASME A112.19.7M

ANSI Z124.1

IAPMO/UPC

Underwriter's Laboratories (UL)

Installation Notes

Floor support under whirlpool must provide for a minimum of 38 lbs/square foot (188 kg/square meter) loading.

The apron must be installed before the finished floor and wall materials are installed.

Important note for the Kohler Synchrony K-1192-96 Biscuit 5' Whirlpool Bath Tub

Shipping Note: Due to the oversized nature of this product, freight is the only shipping method available. Our online system provides an accurate shipping cost. Just click the "Add to Cart" button and enter your zip code into the form on the Shopping Cart page.

Files for the Kohler Synchrony K-1192-96 Biscuit 5' Whirlpool Bath Tub

087206364488 UPC/EAN:

Note: Specifications and pricing of the Kohler Synchrony K-1192-96 Biscuit 5' Whirlpool Bath Tub subject to change without notice. Illustrations and descriptions of the Kohler K-1192-96 do not claim to be complete or exhaustive.
