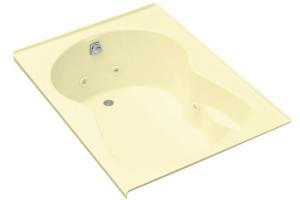

Kohler Synchrony K-1192-L-Y2 Sunlight 5' Whirlpool Bath Tub with Left-Hand Drain and Tiling Flange

Kohler Synchrony K-1192-L-Y2 Sunlight 5' Whirlpool Bath Tub with Left-Hand Drain and Tiling Flange

Synchrony© 5' whirlpool with left-hand drain and tiling flange, less softgrip grip handles

With six adjustable ProFlex whirlpool jets, the Synchrony 5' whirlpool features an extra-wide bathing area with added of comfort and design. Crafted of high-quality acrylic, this bath offers versatile drop-in or three-wall alcove installation options and features a left-hand drain.

60" x 42" x 20"
Six ProFlex© whirlpool jets
Integral apron and optional tile-in flange
Drop-in or three-wall alcove installation
Also available with integral apron

Features of the Kohler Synchrony K-1192-L-Y2 Sunlight 5' Whirlpool Bath Tub with Left-Hand Drain and Tiling Flange:

Acrylic
1.25 hp pump with air switch and grounding-type plug-in cord
6 individually adjustable multi-directional hydro-massage jets
Optional K-1491 removable bath pillow
Optional K-1278 front apron
Optional K-1717 ProFlex© 20-minute timer kit
Left drain hole with integral flange
Without softgrip grip handles
60° (152.4 cm) x 42" (106.7 cm) x 20° (50.8 cm)

Also Known As:
K.1192.L.Y2
K 1192 L Y2
K_1192_L_Y2
K1192LY2

The bath whirlpool shall be 60° (152.4 cm) in length, 42" (106.7 cm) in width, and 20° (50.8 cm) in height. Bath whirlpool shall be made of acrylic, left drain with integral flange. Bath whirlpool shall have 6 individually adjustable multi-directional hydro-massage jets, a 1.25 hp pump with air switch and grounding-type plug-in cord. Bath whirlpool shall be without softgrip grip handles. Bath whirlpool shall have an optional K-1278 front apron, an optional K-1491 removable pillow, an optional K-1717 20-minute timer kit, and an optional K-9696 jet trim kit. Bath whirlpool shall be Kohler Model K-1196-L.

Recommended Accessory

K-7213 Cable drain with PVC tubing

K-7214 Cable drain without PVC tubing

K-7161-AF Pop-up Drain

K-1491 Pillow

K-1601 Footstop

K-1283 Separate apron with removable panel for front access

K-9696 Jet trim kit (metal finishes)

K-1717 20-minute timer kit

Codes/Standards Applicable
Specified model meets or exceeds the following:

ASME A112.19.7M

ANSI Z124.1

IAPMO/UPC

Underwriter's Laboratories (UL)

Installation Notes

Floor support under whirlpool must provide for a minimum of 38 lbs/square foot (188 kg/square meter) loading.

The apron must be installed before the finished floor and wall materials are installed.

Important note for the Kohler Synchrony K-1192-L-Y2 Sunlight 5' Whirlpool Bath Tub with Left-Hand Drain and Tiling Flange

Shipping Note: Due to the oversized nature of this product, freight is the only shipping method available. Our online system provides an accurate shipping cost. Just click the "Add to Cart" button and enter your zip code into the form on the Shopping Cart page.

008720672019 UPC/EAN:

Note: Specifications and pricing of the Kohler Synchrony K-1192-L-Y2 Sunlight 5' Whirlpool Bath Tub with Left-Hand Drain and Tiling Flange subject to change without notice. Illustrations and descriptions of the Kohler K-1192-L-Y2 do not claim to be complete or exhaustive.
