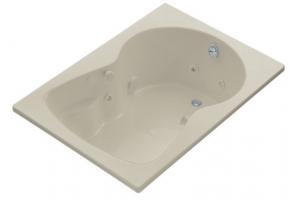

Kohler Synchrony K-1196-G9 Sandbar 5' Whirlpool Bath Tub with Softgrip Grip Handles

Kohler Synchrony K-1196-G9 Sandbar 5' Whirlpool Bath Tub with Softgrip Grip Handles

Synchrony© 5' whirlpool with softgrip grip handles

The functional design of the Synchrony 5' whirlpool provides an extra-wide bathing area for added comfort. This model features a pump with innovative technology that provides a strong, steady level of hydro-massage and six adjustable ProFlex whirlpool jets for a luxurious bathing experience. Available in a palette of KOHLER colors, each bath is vacuum-molded from sheets of acrylic and reinforced with fiberglass, making it strong and flex-resistant. A drop-in installation, reversible drain outlet, and bath- or deck-mount faucet options ensure versatility to suit your design vision.

60" x 42" x 20"
A high level of design with extra-wide bathing area
Six adjustable ProFlex© whirlpool jets for maximum bather comfort
Drop-in or three-wall alcove installation
Innovative technology enables this pump to provide a strong, steady level of hydro-massage
Drop-in installation
Acrylic

Features of the Kohler Synchrony K-1196-G9 Sandbar 5' Whirlpool Bath Tub with Softgrip Grip Handles:

Acrylic
1.25 hp pump with air switch and grounding-type plug-in cord
6 individually adjustable multi-directional hydro-massage jets
Optional K-1491 removable bath pillow
Optional K-1278 front apron
Optional K-1717 ProFlex© 20-minute timer kit
Drop-in rim style
With softgrip grip handles
60° (152.4 cm) x 42" (106.7 cm) x 20° (50.8 cm)

Also Known As:
K.1196.G9
K 1196 G9
K_1196_G9
K1196G9

The bath whirlpool shall be 60° (152.4 cm) in length, 42" (106.7 cm) in width, and 20° (50.8 cm) in height. Bath whirlpool shall be made of acrylic, drop-in rim style. Bath whirlpool shall have 6 individually adjustable multi-directional hydro-massage jets, a 1.25 hp pump with air switch and grounding-type plug-in cord. Bath whirlpool shall be with softgrip grip handles. Bath whirlpool shall have an optional K-1278 front apron, an optional K-1491 removable pillow, an optional K-1717 20-minute timer kit, and an optional K-9696 jet trim kit. Bath whirlpool shall be Kohler Model K-1196.

Recommended Accessory

K-7213 Cable drain with PVC tubing

K-7214 Cable drain without PVC tubing

K-7161-AF Pop-up Drain

K-1491 Pillow

K-1601 Footstop

K-1283 Separate apron with removable panel for front access

K-9696 Jet trim kit (metal finishes)

K-1717 20-minute timer kit

Codes/Standards Applicable
Specified model meets or exceeds the following:

ASME A112.19.7M

ANSI Z124.1

IAPMO/UPC

Underwriter's Laboratories (UL)

Installation Notes

Floor support under whirlpool must provide for a minimum of 38 lbs/square foot (188 kg/square meter) loading.

The apron must be installed before the finished floor and wall materials are installed.

Important note for the Kohler Synchrony K-1196-G9 Sandbar 5' Whirlpool Bath Tub with Softgrip Grip Handles

Shipping Note: Due to the oversized nature of this product, freight is the only shipping method available. Our online system provides an accurate shipping cost. Just click the "Add to Cart" button and enter your zip code into the form on the Shopping Cart page.

008720633748 UPC/EAN:

Note: Specifications and pricing of the Kohler Synchrony K-1196-G9 Sandbar 5' Whirlpool Bath Tub with Softgrip Grip Handles subject to change without notice. Illustrations and descriptions of the Kohler K-1196-G9 do not claim to be complete or exhaustive.
