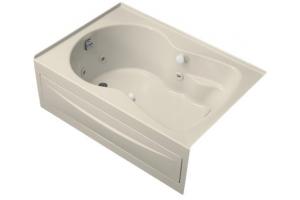

Kohler Synchrony K-1196-LA-47 Almond 5' Whirlpool Bath Tub with Integral Apron, Left-Hand Drain and Softgrip Grip Handles

Kohler Synchrony K-1196-LA-47 Almond 5' Whirlpool Bath Tub with Integral Apron, Left-Hand Drain and Softgrip Grip Handles

Synchrony© 5' whirlpool with integral apron, left-hand drain and softgrip grip handles

The functional design of the Synchrony 6' whirlpool bath provides an extra-wide bathing area and integral armrests for added comfort. This model features a pump with innovative technology that provides a strong, steady level of hydro-massage and six adjustable ProFlex whirlpool jets for a luxurious bathing experience. Each bath is vacuum-molded from sheets of acrylic and reinforced with fiberglass, making it strong and flex-resistant.

60" x 42" x 20"
A high level of design with extra-wide bathing area
Six adjustable ProFlex© whirlpool jets for maximum bather comfort
Drop-in or three-wall alcove installation
Innovative technology enables this pump to provide a strong, steady level of hydro-massage
Acrylic
Integral apron for easy alcove installation and pump access
Includes tile flange to simplify installation and prevent the possibility of water damage behind the wall

Features of the Kohler Synchrony K-1196-LA-47 Almond 5' Whirlpool Bath Tub with Integral Apron, Left-Hand Drain and Softgrip Grip Handles:

Acrylic
Integral apron with removable panel for front access
6 individually adjustable multi-directional hydro-massage jets
1-1/4 HP pump with air switch and cord with plug
UL Listed
With Softgrip grip handles
Left drain hole with integral flange
Optional K-1491 removable pillow
Optional K-1639 timer kit
60" (152.4cm) x 42" (106.7cm) x 20" (50.8cm)

Also Known As:
K.1196.LA.47
K 1196 LA 47
K_1196_LA_47
K1196LA47

The bath whirlpool shall be 60" (152.4cm) in length, 42" (106.7cm) in width, and 20" (50.8cm) in height. Bath whirlpool shall be made of acrylic. Bath whirlpool shall have integral apron with removable panel for front access. Bath whirlpool shall have 6 individually adjustable multi-directional hydro-massage jets, 1-1/4 HP pump with air switch and cord with plug. Bath whirlpool shall be UL Listed. Bath whirlpool shall be with Softgrip grip handles. Bath whirlpool shall have optional K-1491 removable pillow. Bath whirlpool shall have optional K-1639 timer kit. Bath whirlpool shall be Kohler Model K-1196-LA.

Recommended Accessory

K-7161-AF Pop-up Drain

K-1491 Pillow

K-9696 Jet trim kit (metal finishes)

K-1639 Timer kit

Codes/Standards Applicable
Specified model meets or exceeds the following:

ASME A112.19.7M

ANSI Z124.1

IAPMO/UPC

Underwriter's Laboratories (UL)

Installation Notes

Floor support under whirlpool must provide for a minimum of 80 lbs./square foot (390 Kg./square meter) loading.

If installing a rim-mount faucet, make sure there is no interference with drain overflow and circulating system before drilling any holes. Consult local and national codes for minimum air gap requirements if installing a spout on the faucet deck.

Important note for the Kohler Synchrony K-1196-LA-47 Almond 5' Whirlpool Bath Tub with Integral Apron, Left-Hand Drain and Softgrip Grip Handles

Shipping Note: Due to the oversized nature of this product, freight is the only shipping method available. Our online system provides an accurate shipping cost. Just click the "Add to Cart" button and enter your zip code into the form on the Shopping Cart page.

008720637076 UPC/EAN:

Note: Specifications and pricing of the Kohler Synchrony K-1196-LA-47 Almond 5' Whirlpool Bath Tub with Integral Apron, Left-Hand Drain and Softgrip Grip Handles subject to change without notice. Illustrations and descriptions of the Kohler K-1196-LA-47 do not claim to be complete or exhaustive.
