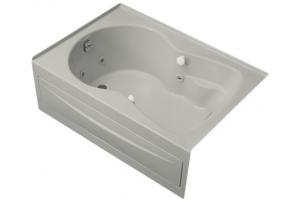

Kohler Synchrony K-1196-LA-95 Ice Grey 5' Whirlpool Bath Tub with Integral Apron, Left-Hand Drain and Softgrip Grip Handles
Synchrony© 5' whirlpool with integral apron, left-hand drain and softgrip grip handles
The functional design of the Synchrony 6' whirlpool bath provides an extra-wide bathing area and integral armrests for added comfort. This model features a pump with innovative technology that provides a strong, steady level of hydro-massage and six adjustable ProFlex whirlpool jets for a luxurious bathing experience. Each bath is vacuum-molded from sheets of acrylic and reinforced with fiberglass, making it strong and flex-resistant.
- 60" x 42" x 20"
- A high level of design with extra-wide bathing area
- Six adjustable ProFlex© whirlpool jets for maximum bather comfort
- Drop-in or three-wall alcove installation
- Innovative technology enables this pump to provide a strong, steady level of hydro-massage
- Acrylic
- Integral apron for easy alcove installation and pump access
- Includes tile flange to simplify installation and prevent the possibility of water damage behind the wall
Features of the Kohler Synchrony K-1196-LA-95 Ice Grey 5' Whirlpool Bath Tub with Integral Apron, Left-Hand Drain and Softgrip Grip Handles:
- Acrylic
- Integral apron with removable panel for front access
- 6 individually adjustable multi-directional hydro-massage jets
- 1-1/4 HP pump with air switch and cord with plug
- UL Listed
- With Softgrip grip handles
- Left drain hole with integral flange
- Optional K-1491 removable pillow
- Optional K-1639 timer kit
- 60" (152.4cm) x 42" (106.7cm) x 20" (50.8cm)
Also Known As:
K.1196.LA.95
K 1196 LA 95
K_1196_LA_95
K1196LA95
The bath whirlpool shall be 60" (152.4cm) in length, 42" (106.7cm) in width, and 20" (50.8cm) in height. Bath whirlpool shall be made of acrylic. Bath whirlpool shall have integral apron with removable panel for front access. Bath whirlpool shall have 6 individually adjustable multi-directional hydro-massage jets, 1-1/4 HP pump with air switch and cord with plug. Bath whirlpool shall be UL Listed. Bath whirlpool shall be with Softgrip grip handles. Bath whirlpool shall have optional K-1491 removable pillow. Bath whirlpool shall have optional K-1639 timer kit. Bath whirlpool shall be Kohler Model K-1196-LA.
Recommended Accessory
K-7161-AF Pop-up DrainK-1491 PillowK-9696 Jet trim kit (metal finishes)K-1639 Timer kitCodes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.19.7MANSI Z124.1IAPMO/UPCUnderwriter's Laboratories (UL)Installation Notes
Floor support under whirlpool must provide for a minimum of 80 lbs./square foot (390 Kg./square meter) loading.If installing a rim-mount faucet, make sure there is no interference with drain overflow and circulating system before drilling any holes. Consult local and national codes for minimum air gap requirements if installing a spout on the faucet deck.Important note for the Kohler Synchrony K-1196-LA-95 Ice Grey 5' Whirlpool Bath Tub with Integral Apron, Left-Hand Drain and Softgrip Grip Handles
Shipping Note: Due to the oversized nature of this product, freight is the only shipping method available. Our online system provides an accurate shipping cost. Just click the "Add to Cart" button and enter your zip code into the form on the Shopping Cart page.
