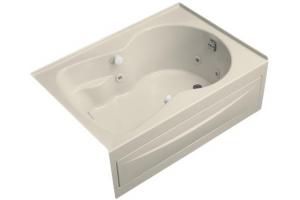

Kohler Synchrony K-1196-RA-47 Almond 5' Whirlpool Bath Tub with Integral Apron, Right-Hand Drain and Softgrip Grip Handles

Kohler Synchrony K-1196-RA-47 Almond 5' Whirlpool Bath Tub with Integral Apron, Right-Hand Drain and Softgrip Grip Handles

Synchrony© 5' whirlpool with integral apron, right-hand drain and softgrip grip handles

Delivering a high level of design, the Synchrony 5' whirlpool provides extra-wide showering and bathing areas with luxury at every turn. Relax while the six adjustable ProFlex whirlpool jets relieve stress and leave you rejuvenated. Positioned exactly where you need them, softgrip handles are made of stain- and mildew-resistant Santoprene and are non-slippery to assist you getting in and out of the whirlpool. An integral apron makes for easy alcove installation and pump access, while the tile flange also simplifies installation and helps prevent the possibility of water damage behind the wall.

60" x 42" x 20"
A high level of design with extra-wide bathing area
Six adjustable ProFlex© whirlpool jets for maximum bather comfort
Drop-in or three-wall alcove installation
Innovative technology enables this pump to provide a strong, steady level of hydro-massage
Acrylic
Integral apron for easy alcove installation and pump access
Includes tile flange to simplify installation and prevent the possibility of water damage behind the wall

Features of the Kohler Synchrony K-1196-RA-47 Almond 5' Whirlpool Bath Tub with Integral Apron, Right-Hand Drain and Softgrip Grip Handles:

Acrylic
Integral apron with removable panel for front access
6 individually adjustable multi-directional hydro-massage jets
1-1/4 HP pump with air switch and cord with plug
UL Listed
With Softgrip grip handles
Right drain hole with integral flange
Optional K-1491 removable pillow
Optional K-1639 timer kit
60" (152.4cm) x 42" (106.7cm) x 20" (50.8cm)

Also Known As:
K.1196.RA.47
K 1196 RA 47
K_1196_RA_47
K1196RA47

The bath whirlpool shall be 60" (152.4cm) in length, 42" (106.7cm) in width, and 20" (50.8cm) in height. Bath whirlpool shall be made of acrylic. Bath whirlpool shall have integral apron with removable panel for front access. Bath whirlpool shall have 6 individually adjustable multi-directional hydro-massage jets, 1-1/4 HP pump with air switch and cord with plug. Bath whirlpool shall be UL Listed. Bath whirlpool shall be with Softgrip grip handles. Bath whirlpool shall have optional K-1491 removable pillow. Bath whirlpool shall have optional K-1639 timer kit. Bath whirlpool shall be Kohler Model K-1196-RA.

Recommended Accessory

K-7161-AF Pop-up Drain

K-1491 Pillow

K-9696 Jet trim kit (metal finishes)

K-1639 Timer kit

Codes/Standards Applicable
Specified model meets or exceeds the following:

ASME A112.19.7M

ANSI Z124.1

IAPMO/UPC

Underwriter's Laboratories (UL)

Installation Notes

Floor support under whirlpool must provide for a minimum of 80 lbs./square foot (390 Kg./square meter) loading.

If installing a rim-mount faucet, make sure there is no interference with drain overflow and circulating system before drilling any holes. Consult local and national codes for minimum air gap requirements if installing a spout on the faucet deck.

Important note for the Kohler Synchrony K-1196-RA-47 Almond 5' Whirlpool Bath Tub with Integral Apron, Right-Hand Drain and Softgrip Grip Handles

Shipping Note: Due to the oversized nature of this product, freight is the only shipping method available. Our online system provides an accurate shipping cost. Just click the "Add to Cart" button and enter your zip code into the form on the Shopping Cart page.

008720637082 UPC/EAN:

Note: Specifications and pricing of the Kohler Synchrony K-1196-RA-47 Almond 5' Whirlpool Bath Tub with Integral Apron, Right-Hand Drain and Softgrip Grip Handles subject to change without notice. Illustrations and descriptions of the Kohler K-1196-RA-47 do not claim to be complete or exhaustive.
